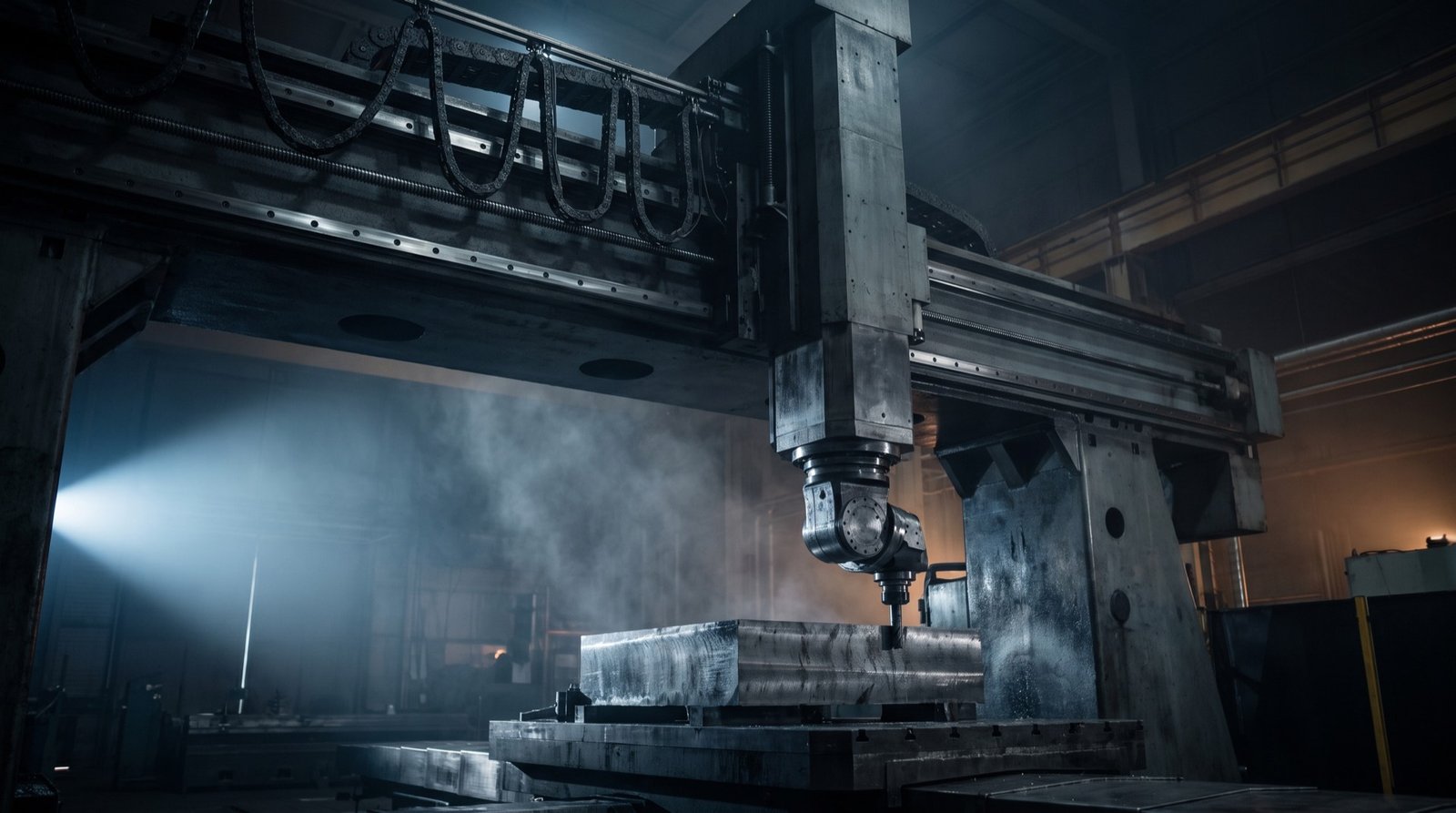

Heavy Gantry Milling
Bridge-type machining centres for large structural steel and cast iron work — bed plates, frames, housings and moulds up to 4.2 metres.
- X TRAVEL4200 mm
- Y TRAVEL2400 mm
- Z TRAVEL1100 mm
Precision CNC Machining · Istanbul, Türkiye PRECISION IN MOTION
We machine metal parts to your drawing — shafts, flanges, valve bodies, impellers, bushings and wear components, in steel, stainless, bronze and engineering plastics. One-offs and production runs, from Istanbul.
What We Make
Precision parts machined to your drawing. These are the components that leave our floor.
-

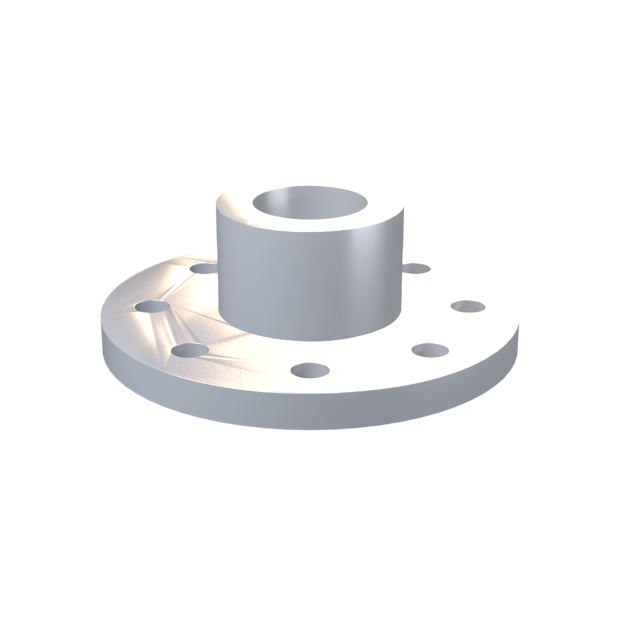

Flanges & Fittings
Faced, bored and drilled in one setup so the bolt circle stays true
42CrMo4 · 316L -

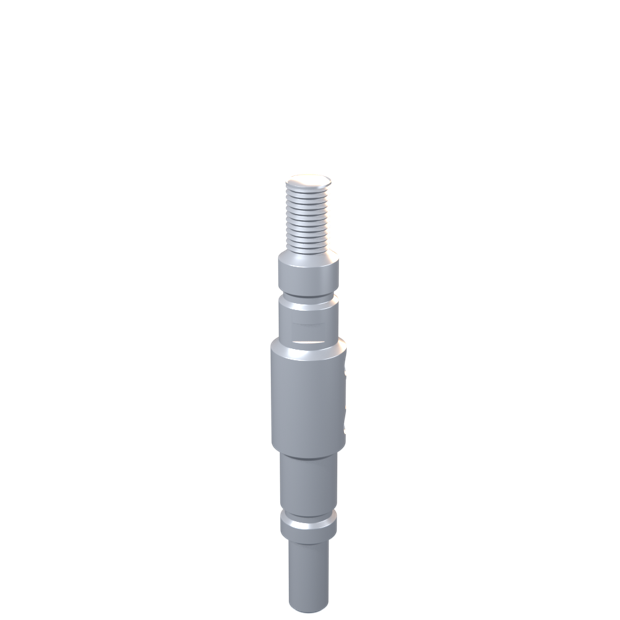

Precision Shafts
Ground journals, keyways and snap-ring grooves held concentric
42CrMo4 hardened -

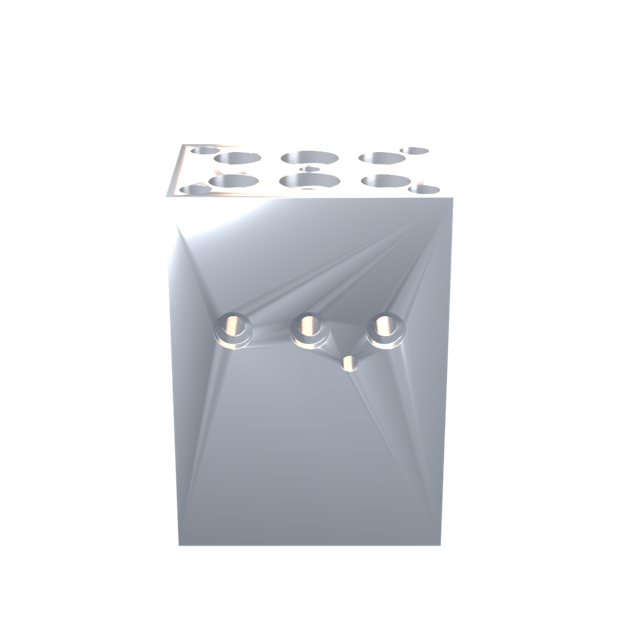

Hydraulic Manifolds
Cross-drilled porting and sealing faces cut from solid billet
316L · Duplex 2205 -

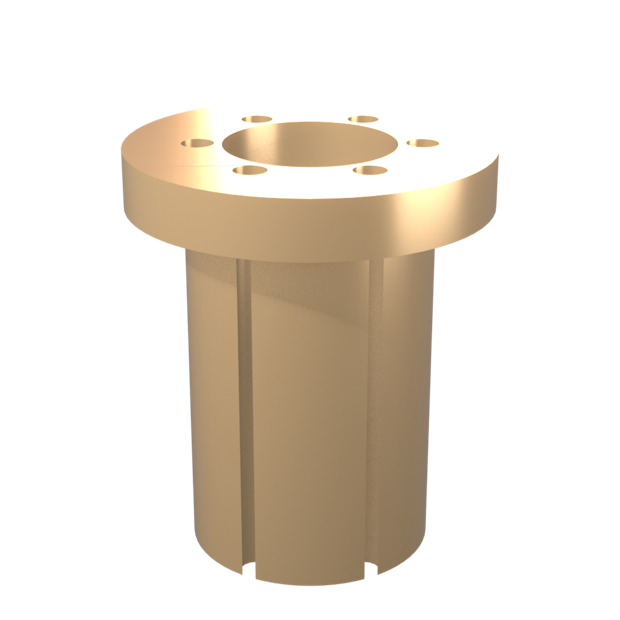

Bushings & Sleeves
Bored to a controlled running fit, with cut oil grooves
Bronze CuSn12 -

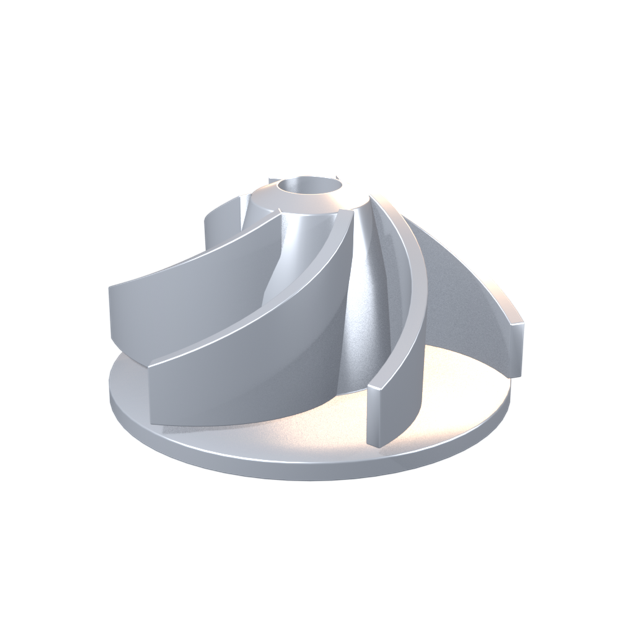

Impellers
Curved vanes cut in one continuous five-axis operation
316L · Duplex -

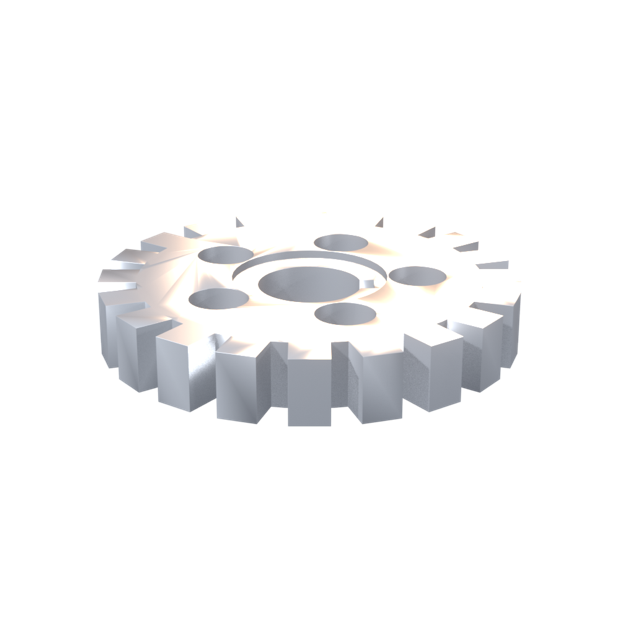

Gears & Drive Parts
Milled tooth forms and keyed bores, case-hardened
16MnCr5 -

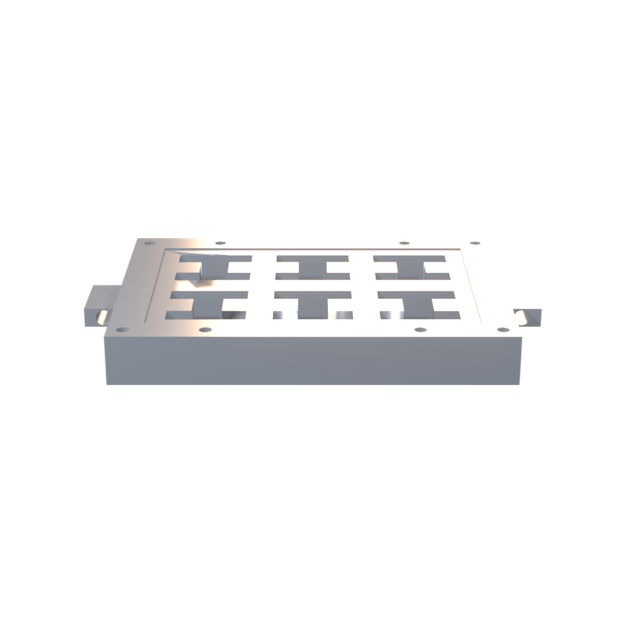

Interlock Paving Moulds
Cavity walls ground to survive millions of press cycles
1.2379 tool steel -
Something Else?
If it can be milled or turned, we will quote it. Send the drawing and we come back with a price and a lead time.
Send a drawing →
Send your drawing for a quote
STEP · IGES · DWG · PDF — or a photograph of the part
Every part begins as a solid block of nothing in particular. What it becomes is decided in thousandths of a millimetre — by the spindle, the feed, and the discipline behind them.
WERKMAC CNC — MACHINING DOCTRINE
The Machine Floor
CNC milling and turning under one roof — heavy gantry and bridge-type machining centres, running lights-out.
Precision 5-Axis
Simultaneous five-axis work for impellers, manifolds and complex curved geometry that cannot be reached in a single setup.
- SPINDLE18 000 rpm
- TOLERANCE±0.005 mm
- SURFACERa 0.4
CNC Turning
Long-bed turning for shafts, rolls, bushings and sleeves, with live tooling for milled features in one clamping.
- SWINGØ 800 mm
- LENGTH3000 mm
- LIVE TOOLYes
Metrology & QC
Every batch is measured against the drawing on a CMM. Full dimensional reports and material certificates on request.
- CMMRuby probe
- REPORTPer batch
- CERTSEN 10204
THE CUT
Carbide meets hardened steel at 18 000 rpm. Everything we promise is decided here.
Components We Machine
Select a component — the geometry rebuilds in real time.
MATERIAL42CrMo4
TOLERANCE±0.010 mm
FINISHRa 0.8
Machined flanges and pipe fittings for pressure systems — faced, bored and drilled on a single setup so bolt circles stay true.
MEASURED
Critical dimensions are checked on the CMM to ±0.005 mm before a batch leaves the floor — and the report ships with the parts.
From the Mountain
Certified stock, traceable from mill to machine.
- Carbon & Alloy SteelS355 · C45 · 42CrMo4 · 16MnCr5
- Stainless304 · 316L · 17-4 PH · Duplex 2205
- Tool & Wear Steel1.2379 · 1.2344 · Hardox 400/500
- Non-FerrousBronze CuSn12 · Brass · Aluminium 7075
- Engineering PlasticsPOM · PEEK · PA6 G · UHMW-PE
Industries Served
Industries we supply CNC machined parts to.
Hydraulic
Cylinder components, valve bodies, manifolds, gland nuts and polished rods for high-pressure systems.
Marine
Shaft couplings, stern gear, corrosion-resistant fittings and bronze bushings for vessels and shipyards.
Chemical
Stainless and duplex flanges, pump housings, impellers and sealing faces for aggressive media.
Mining & Quarry
Wear-resistant liners, crusher components and hardened tooling built to survive abrasion.
Construction
Interlock paving moulds, block machine tooling and heavy structural machined parts.
Energy
Turbine and generator components, precision housings and rotating assemblies.
Drawing to Delivery
Five steps. No surprises.
- 01
Drawing & DFM
Send a STEP file or a PDF drawing. We review it for manufacturability and come back with a fixed price and lead time.
- 02
CAM & Fixturing
Toolpaths are programmed and simulated, workholding designed so the part is cut in the fewest possible setups.
- 03
Machining
Roughing, semi-finishing and finishing passes on calibrated machines, with in-process checks against the drawing.
- 04
Inspection
Critical dimensions measured on the CMM. You receive a dimensional report and material certificate with the batch.
- 05
Finishing & Delivery
Heat treatment, coating, passivation or painting as required — then packed and shipped from Istanbul.
Carve It Yourself
Sweep across the billet. Everything that is not the part comes off — the same way it comes off a machine. Four parts to cut.
Move your cursor across the billet
Common Questions
What buyers usually ask before sending a drawing.
What tolerances can you hold?
We work to ±0.005 mm on precision features such as ground bearing journals, with surface finishes down to Ra 0.4. Critical dimensions are measured on a coordinate measuring machine and you receive the dimensional report with the batch.
What files do you need for a quote?
A STEP or IGES model is ideal because it lets us program directly from your geometry. We also work from DWG files and PDF drawings. If all you have is a sample part or a sketch, send a photograph with the key dimensions and we will come back with questions.
Do you machine one-off parts, or only production runs?
Both. We machine single replacement parts and prototypes as readily as repeat production batches. One-offs are often reverse-engineered from a worn component when the original drawing no longer exists.
Which materials do you machine?
Carbon and alloy steels including S355, C45, 42CrMo4 and 16MnCr5; stainless grades 304, 316L, 17-4 PH and Duplex 2205; tool and wear steels such as 1.2379, 1.2344 and Hardox; bronze, brass and aluminium; and engineering plastics including POM, PEEK and UHMW-PE.
Do you supply material certificates?
Yes. Material certificates to EN 10204 are available on request, and a dimensional report is supplied with each batch as standard.
Do you ship outside Türkiye?
Yes. Parts are finished, packed and shipped from our works in Istanbul, and we supply customers internationally as well as across Türkiye.
What kind of parts do you specialise in?
Heavy and precision machined components: drive shafts, flanges and pipe fittings, hydraulic manifolds and valve bodies, bushings and wear sleeves, pump and blower impellers, gears and drive parts, and hardened interlock moulds for paving-block machines.
SEND USTHE DRAWING
STEP, IGES, DWG or a photograph on the back of an envelope. We will tell you what it costs and when it ships.
